Home Elevator Dimensions, Space Requirements, and Sizing for Your Residence

You’ve measured the closet on both floors. You’ve looked at the space beside the stairwell. You think there might be room for a home elevator, but you’re not entirely sure what you’re supposed to be measuring for. That uncertainty is what keeps most buyers from moving forward, and it’s easy to resolve once you know which numbers actually matter.

Understanding home elevator dimensions before you talk to anyone puts you in a much stronger position to evaluate what’s feasible, ask the right questions, and avoid surprises at a site assessment. The numbers that matter extend well beyond the cab interior. The full installation envelope includes the shaft or hoistway footprint surrounding the cab, any pit required below the lowest landing, the overhead clearance at the top floor, and in some configurations a separate machine room. This post breaks down each element by elevator type, gives you a cab sizing reference organized by use case, and walks through what to document in your home before your first consultation.

The Space Requirements Behind Every Home Elevator

Home elevator dimensions are a three-dimensional planning problem, and most homeowners only account for one of those dimensions: the floor footprint. The installation envelope is larger than the cab in every direction.

Cab Size Versus Total Installation Footprint

The cab is the interior space occupants ride in, measured as interior width by interior depth. Standard residential cabs start around 28 to 36 inches wide and 48 to 54 inches deep, depending on the system and manufacturer. That cab interior is not the same thing as the space the elevator occupies in your home.

The structure surrounding the cab, whether it’s a framed hoistway, a self-supporting tower, or a guide rail assembly, adds clearance on all sides. Most systems add 6 to 18 or more inches to the total floor area beyond the cab interior. Calculating accurate home elevator dimensions means accounting for the full hoistway exterior, not just the usable space inside.

Home Elevator Shaft and Hoistway Footprint

A traditional home elevator shaft is a framed structural enclosure that houses the cab and its guide system. For hydraulic and cable-driven traction systems, this shaft is built into the home’s structure and is typically load-bearing. Total shaft exterior dimensions for a standard residential cab fall roughly between 48 and 60 inches per side, though reduced-clearance and self-supporting configurations exist for retrofit applications. Several elevator types eliminate the conventional shaft requirement entirely, which opens up more viable placement options in existing homes without the framing and structural work a traditional shaft requires.

Pit Depth and Overhead Clearance

Two spatial constraints that fall outside most buyers’ initial planning can determine whether certain elevator types are even feasible. Both are structural, and neither can be worked around easily after a design is committed.

Below the Floor: Pit Depth by Elevator Type

A pit is a recessed section at the base of the lowest landing that houses buffer equipment, leveling hardware, or in the case of hydraulic systems, the bottom of the hydraulic cylinder. Pit depth requirements vary significantly by drive type.

Hydraulic elevators typically require a pit between 8 and 12 inches deep, though low-oil configurations can reduce this. Standard cable-driven traction systems carry their own pit specifications. Homes built on slab foundations or with limited crawl space clearance may not accommodate these depths without excavation work. Pneumatic vacuum elevators and shaftless through-floor systems require no pit at all, which makes them the most practical starting point for homes where digging isn’t realistic.

Above the Top Landing: Overhead Clearance

At the top floor, overhead clearance is the height available above the cab at its uppermost position. This space accommodates the cab’s full travel height and the mechanical components at the top of the travel path. Most residential systems require a minimum of 9 to 11 feet of total travel height, depending on ceiling heights at each floor and the specific configuration in use.

In homes with standard 8-foot ceilings at the top floor, certain elevator types won’t fit without a structural modification or bump-out. Confirming that ceiling height before selecting a system avoids a late-stage redesign.

Cab Sizing Reference by Use Case

Interior cab dimensions aren’t universal. The right size depends on how the elevator will actually be used, and that varies considerably across households.

Elevator Types That Work in Tight and Retrofit Spaces

Not every home has room for a traditional framed hoistway. Several elevator systems are engineered specifically to minimize the structural footprint, which makes them the most practical option for existing homes where available space is limited.

Shaftless Through-Floor Elevators

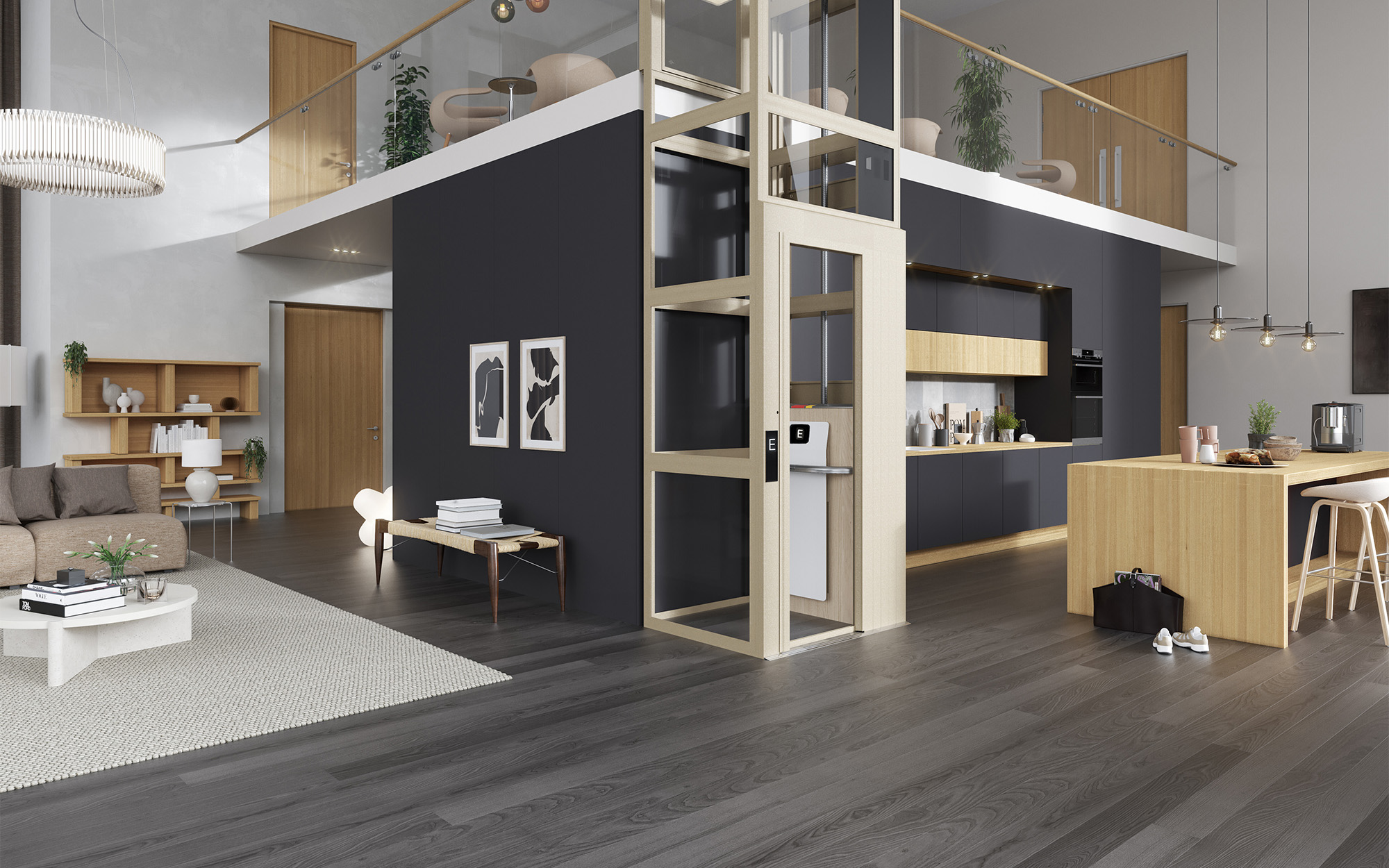

Through-floor elevators travel through a compact opening cut between floors rather than inside a conventional framed shaft. The Cibes Ascenda operates with a self-supporting structure that requires no hoistway construction and no pit, making it one of the fastest systems to install in existing homes since it bypasses the structural framing and carpentry a conventional shaft requires. The Ascenda is available in four sizes and serves two stops, giving homeowners flexibility to match the unit to their floor plan without redesigning the space around it.

Pneumatic Vacuum Elevators

Pneumatic elevators travel inside a self-supporting transparent tube that rests on the existing floor structure and penetrates each ceiling through a sealed round opening. There’s no pit, no machine room, and no conventional shaft. Outer tube diameters range from roughly 30 to 52 inches, with the largest configurations accommodating power wheelchair users. Many installations are completed in existing space without structural framing beyond the ceiling openings, which makes a small home elevator of this type one of the most accessible choices for older homes on slab foundations or with tight floor plans.

What to Document in an Existing Home

Start by identifying your preferred elevator location. Common placements include stacked closets on each floor, the space adjacent to a stairwell, or a corner where the same footprint is available at every level. The certified elevator contractors at Access Lifts & Ramps will  measure the available floor footprint at each landing: width, depth, and the floor-to-floor height between levels. They also note any structural elements in the ceiling above the proposed top landing, such as load-bearing walls, beams, or HVAC ductwork, that could be a barrier to installation or require additional construction.

At the top floor, measure from finished floor level to the lowest point of the ceiling above. That number feeds directly into whether standard overhead configurations apply for your chosen system or whether a modification is needed.

What to Bring to Your Site Assessment

Document with photos from each level showing the proposed location, the ceiling directly above the top landing, and any visible structural elements in the walls or ceiling. If your home has a basement or crawl space below the lowest landing, note whether it’s accessible and how much vertical clearance exists below the floor deck. That information lets your sales rep evaluate pit feasibility before the visit rather than during it, which keeps the assessment conversation focused on system options rather than preliminary site questions.

Find the Configuration That Works for Your Home

Understanding home elevator dimensions before you meet with an installer means evaluating your options from a position of clarity, not guesswork. The figures in this post are starting points. Your actual installation will be scoped around your specific floor heights, structural conditions, and how the elevator needs to function for your household across years of daily use.

Syracuse Elevator serves homeowners and builders across Central New York, from purpose-built shafts in new construction to compact through-floor installations in homes that didn’t originally have space for a conventional elevator. If you’ve got measurements in hand or simply want to talk through what’s realistic for your situation, reach out and let’s figure out what fits.
